ROADLOC Ⓡ

Innovative new Removable Anchor for Steel Barriers and Attenuators

RoadLocⓇ is an innovative removable anchor that has been specifically designed to allow consistently high anchoring strength and simple removal when installing temporary barriers, crash cushions, security barriers, anything that needs to be anchored to asphalt and concrete road surfaces.

Download Brochure

Using the ROADLOCⓇ anchor you will save 25% of adhesive typically used for pins (and drilling). Spin in or Spin out with battery operated power drill or with a socket wrench
Video List
RoadLoc is easily removable by hand

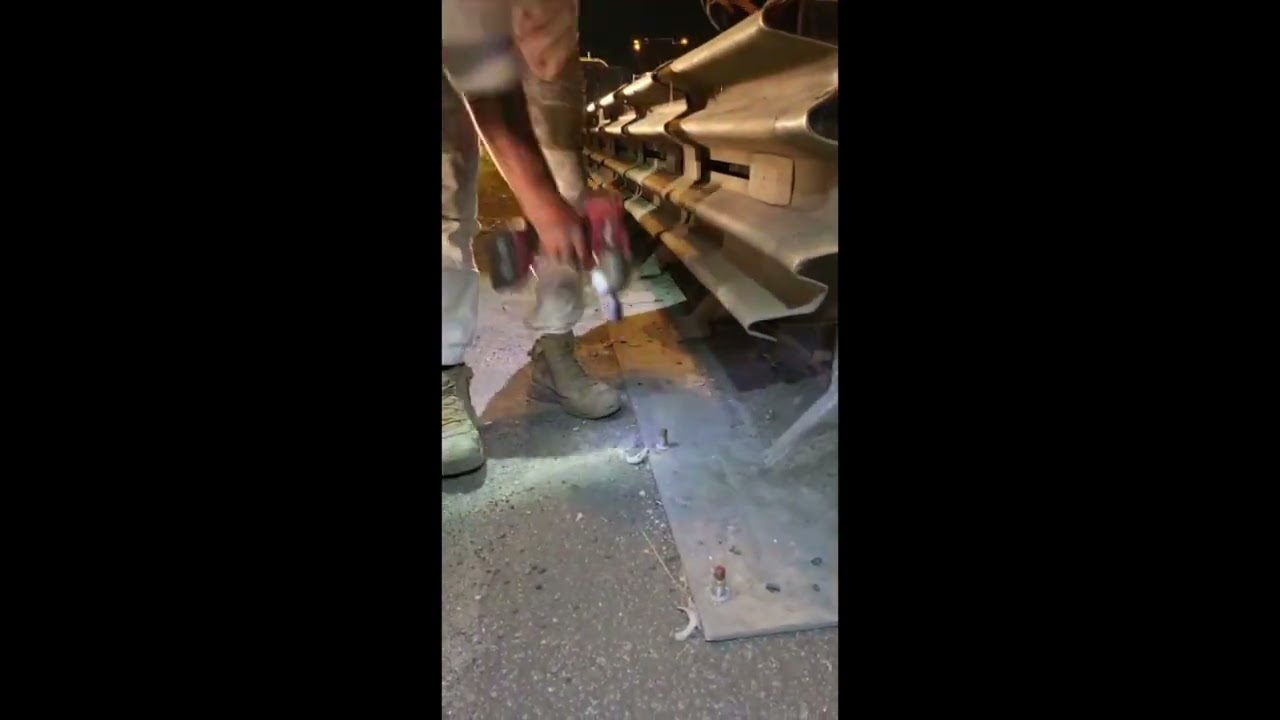

Removing 2 x M20x450 RoadLoc in 22 seconds with only a battery operated drill motor.
Removing M24 x 330 by hand0 RoadLoc in 22 seconds with only a battery operated drill motor.

Not only is RoadLocⓇ easy to remove

It provides superior tensile and shear load strength when compared with Threaded Rod in the same road surface.

Specifications

Anchor design that uses a unique design to provide superior Tensile Strength when anchored in Chemical Epoxy.

RoadLoc’s innovative square top combined with the unique thread allows easy removal without the need for power tools or application of removal coating prior to installation.

Models

M20 (9/16") RoadLoc

Anchor design that uses a unique design to provide superior Tensile Strength when anchored in Chemical Epoxy.

RoadLoc’s innovative square top combined with the unique thread allows easy removal without the need for power tools or application of removal coating prior to installation.

Key Features

  • Removable
  • Reusable
  • Reliable
  • Batch number traceability
  • Install with any chemical epoxy
  • Pre coating NOT required to remove
  • Power tools not required to remove
  • Coring of road not required to remove
  • Cleaning not required to re-use
  • Tensile and Shear Tested in Independent ISO Certified Laboratory
  • Testing conducted in comparison with Threaded Rod proves higher Tensile strength and equivalent Shear strength
BARRIER BRAND Rod Diameter Rod Length Concrete PART NUMBER CONCRETE Rod Length Asphalt PART NUMBER ASPHALT
BarrierGuard 1" (24 mm) 7" (180 mm) MDS-RL45-M24-180 13" (330 mm) MDS-RL45-M24-330
Zoneguard 1" (24 mm) 7" (180 mm) MDS-RL45-M24-180 13" (330 mm) MDS-RL45-M24-330
Defender 1" (24 mm) 7" (180 mm) MDS-RL45-M24-180 13" (330 mm) MDS-RL45-M24-330
HighwayGuard 1" (24 mm) 7" (180 mm) MDS-RL45-M24-180 13" (330 mm) MDS-RL45-M24-330
Barrier Transition (always 6 units) 1" (24 mm) 7" (180 mm) MDS-RL45-M24-180 17-3/4" (450 mm) MDS-RL45-M24-450
Attenuator 9/16" (20 mm) 6.9" (175 mm) MDS-RL45-M20-175 17-3/4" (450 mm) MDS-RL45-M20-450
PRODUCT CODE DIAMETER LENGTH RECOMENDED USE
MDS-RL45-M20-200 9/16" (20 mm) 7.8" (200 mm) Concrete Road * Surface Bridge Deck * Crash Cushions * Temporary Barriers * Security Barriers
MDS-RL45-M20-450 9/16" (20 mm) 17.7" (450 mm) Asphalt Road Surface * Crash Cushions * Terminals
MDS-RL45-M24-200 1" (24 mm) 7.8" (200 mm) Concrete Road Surface * Temporary Barriers * Security Barriers
MDS-RL45-M24-330 1" (24 mm) 13" (330 mm) Asphalt Road Surface * Temporary Barriers * Security Barriers
MDS-RL45-M24-450 1" (24 mm) 17-3/4" (450 mm) Asphalt Road Surface * Temporary Barriers * Security Barriers
